20w 30w 40w 60w anti-glare embedded led troffer light 3000k 4000k 6000k aluminum heat resistant 600*600 school aisle grille lamp

FOB Reference Price:Get Latest Price
US $10-32.9 / Pieces | 1 Piece/Pieces school grille lamp (Min. Order)
Emitting Color:
Cold White White Warm White
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Grille Lights
LED Light Source:
Epistar 2835 SMD
Grid Shape:
H
Input Voltage(V):
AC100-277V
Lamp Luminous Flux(lm):
1900-7700
CRI (Ra>):
83
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum
Certification:
CE, ETL, RoHS, SAA
Base Type:
led
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
OGJG Lighting
Model Number:
OG-PLED-S
Product Name:
school grille lamp
Length:
598mm/1198mm
Power:
20w/30w/40w/60w/80w
CCT:
3000k/4000k/5000k/6000k
Material:
cold rolled steel housing+aluminum louver and reflector
CRI:
Ra>83
Beam angle:
120degree
Warranty:
3 Years
Application:
office/corridors/classroom
Color Temperature(CCT):
Cool White
Lamp Power(W):
40
Lamp Luminous Efficiency(lm/w):
110
Supply Ability
Supply Ability:
3000 Piece/Pieces per Day school grille lamp
Packaging & Delivery
Packaging Details
school grille lamp
standard export packing or meet your requirement
Port
Jiangmen, Shenzhen, Guangzhou
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(day) 10 To be negotiated
Video Description
LED grille lights
cri83 pf0.95 2ft 20w 30w 40w led panel heat resistant led troffer light 600*600mm grille lamp
model
OG-PLED-S
material
cold rolled steel housing+aluminum louver and reflector
rated voltage
AC100-277V
voltage
20w/30w/40w/60w/80w
light color
white
CRI
Ra>83
PF
>0.95
THD
<13%
temperature
3000K/4000K/5000K/6000K
light source
LED
LED type
Epistar 2835 LED
Warranty
3 years
Life time
50000hrs
Products Details

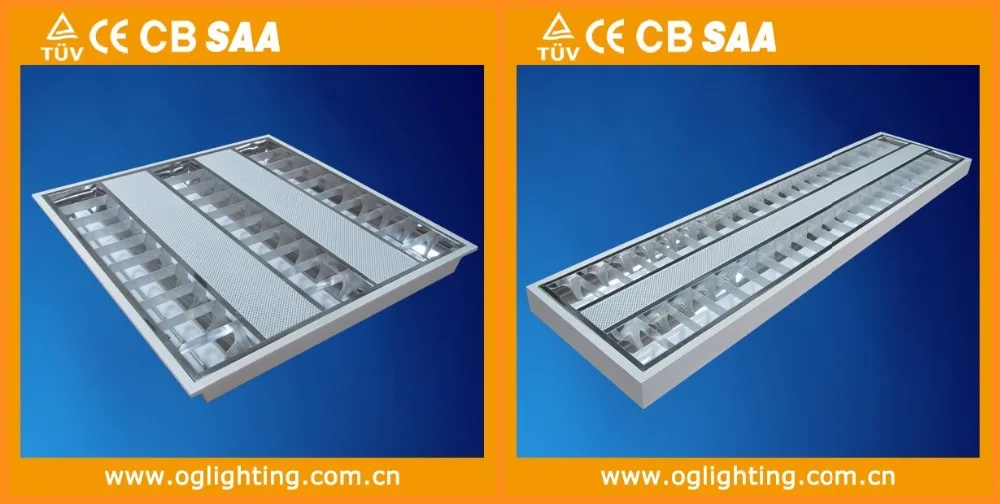

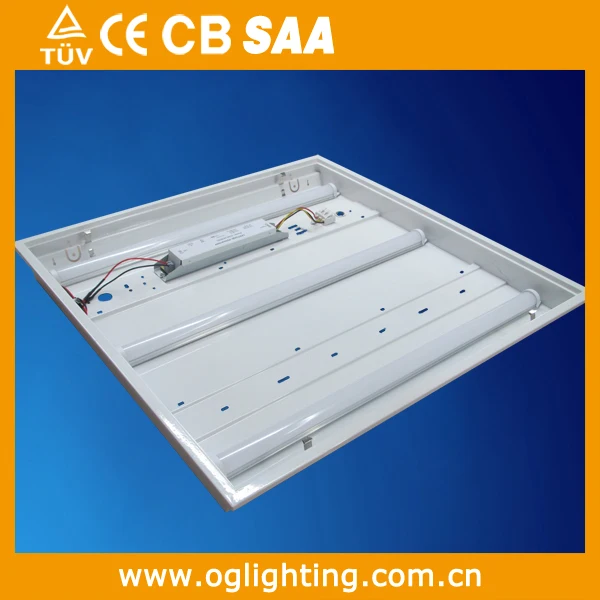

There're two design to choose, can be ceiling / recessed mounted.
Optional: Microwave motion sensor / Emergency battery back up

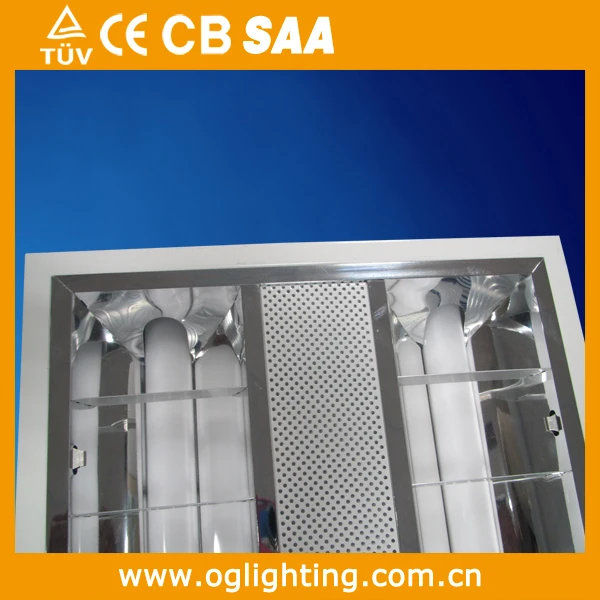

Cold rolled steel housing

Aluminum louvers and reflector

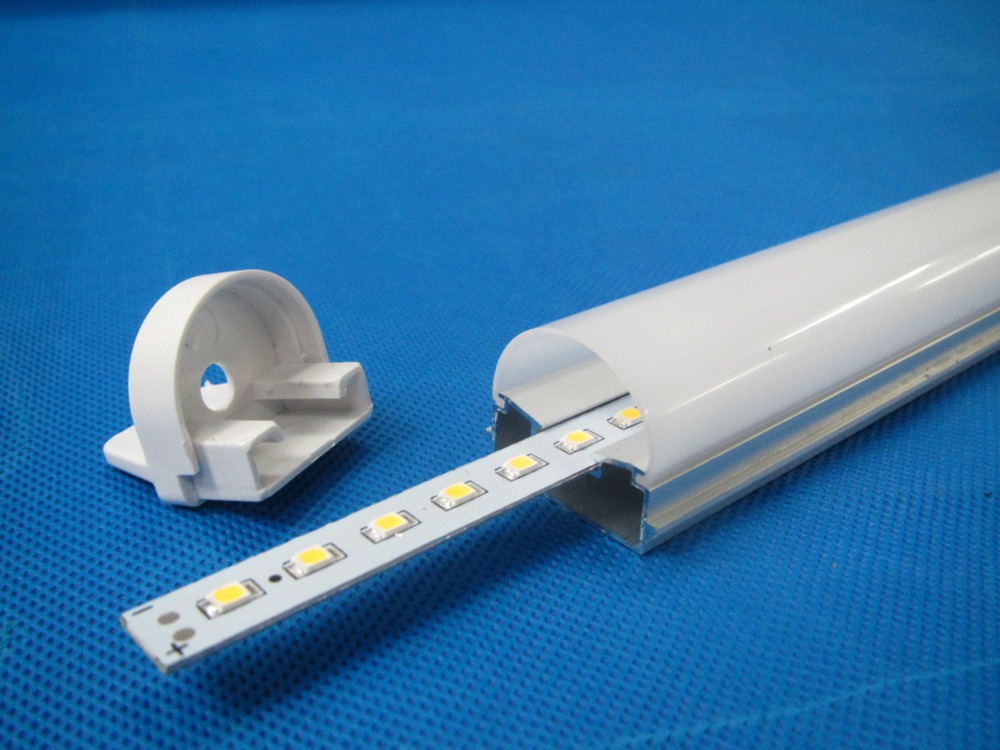

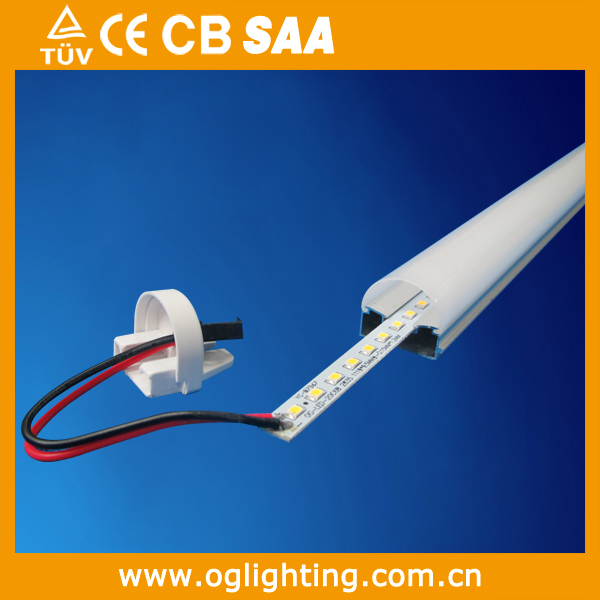

The LED tube is for Epistar 2835 LED chips, can be pull out to achieve replaceable, so that easy to maintain.

The unbreakable and non-discoloring PC lens, performs high lumens output and superior lighting effect.

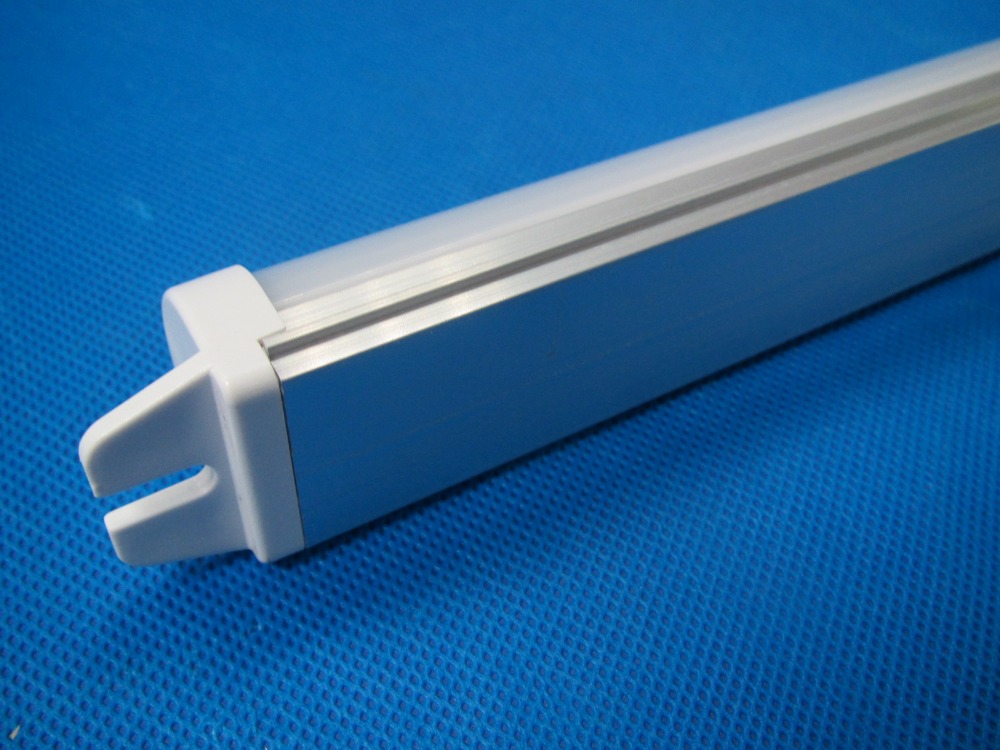

The aluminum heat sink, performs superior heat dissipation.

Construction:

Cold rolled steel housing
Aluminum louver and reflector
Aluminum heatsink
Poly carbonate lens
Isolated LED driver
Epistar 2835 LED chips

Electrical control:

Input voltage range: 100-277V AC

Frequency: 50-60Hz

Power factor: >0.95

Harmonic distortion: THD<13%

Optional microwave motion sensor

Optional emergency battery back up

Features:

1. Aluminum heat sink, performs superior heat dissipation.
2. Led strips with non-discoloring opal poly carbonate diffuser, makes the light soft and comfortable.
3. Epistar 2835 led chips with high luminous efficiency.
4. Integrated modular LED aluminum base board design, LED strip PCB can be replaced, convenient to maintain.
5. Microwave motion sensor and emergency battery backup optional.
6. TUV-CE, CB, SAA approved.

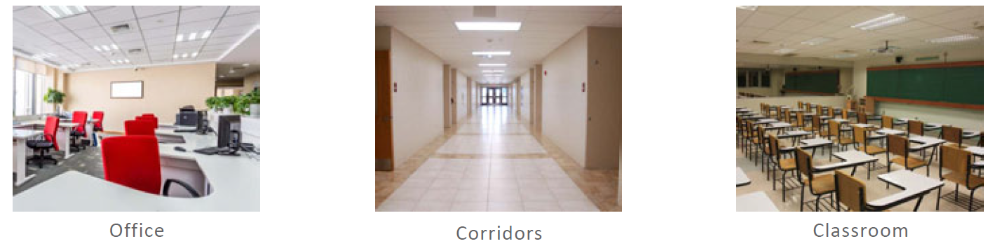

7. Application: office, corridor, classroom, meeting room and other indoor lighting applications.

Specification
Model
Wattage
Size(mm)
Lumens
LED quantity
OG-PLED-220(S)
40W
1198*298*50
3800-4400lm
240(2835/0.2W)
OG-PLED-320(S)
60W
1198*598*50
5700-6600lm
360(2835/0.2W)
OG-PLED-420(S)
80W
1198*598*50
7600-7700lm
480(2835/0.2W)
OG-PLED-210(S)
20W
598*598*50
1900-2200lm
120(2835/0.2W)
OG-PLED-310(S)
30W
598*598*50
2850-3300lm
180(2835/0.2W)
OG-PLED-410(S)
40W
598*598*50
3800-4400lm
240(2835/0.2W)

Hot Sale Model (click it):

Certifications

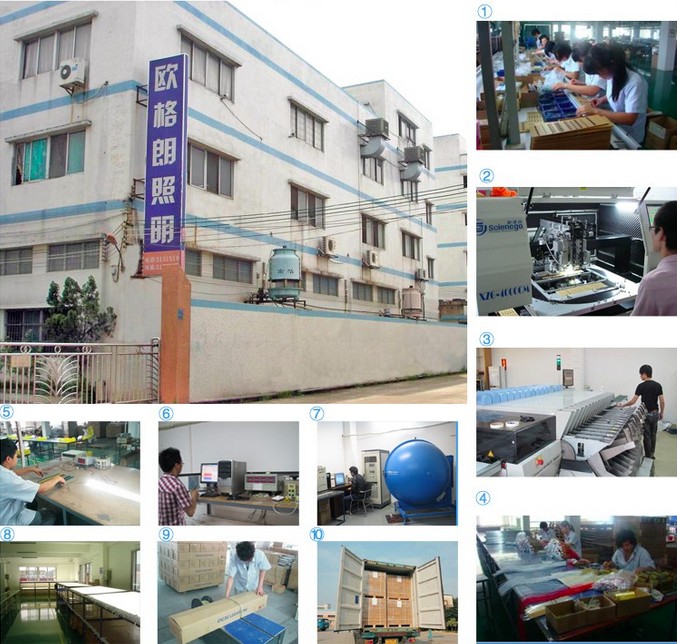

Company Information
